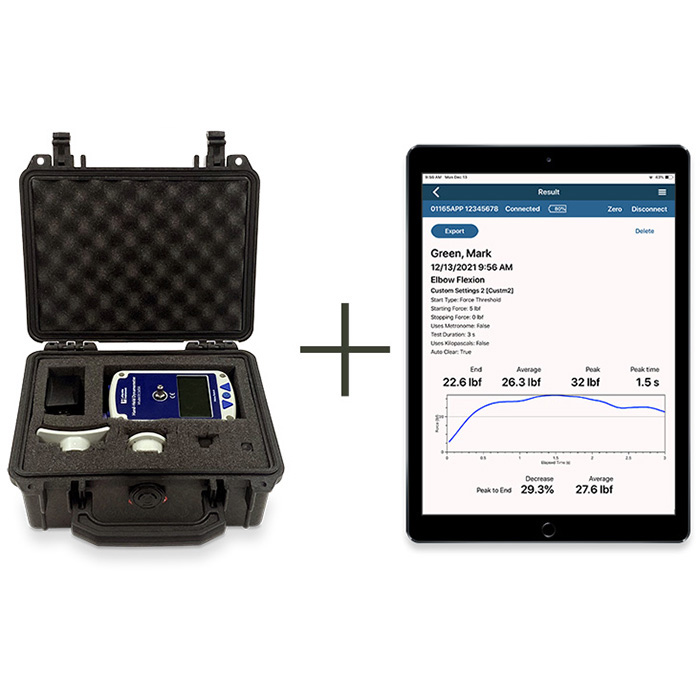

Lafayette Digital Muscle Tester Dynamometer Kit with DynoData App & Tablet. MFID: 01165AKITThe 01165AKIT is the most complete dynamometer solution: The 01165AKIT includes a tablet and an upgraded 01165APP dynamometer for use with the DynoData APP.
What is Hand-Held Dynamometry? Why is it important?
Hand-Held Dynamometry is a valid and proven assessment tool used for objectively quantifying muscle strength. The Lafayette HHD (formerly known as the Manual Muscle Tester) has a high inter/intrarater reliability and is the ideal instrument for documenting medical necessity or tracking the progress during a rehabilitation or a strength training program.
Why should I choose the Lafayette Hand-Held Dynamometer?
The Lafayette Hand-Held Dynamometer features a wide range of customizable options for data storage, force over time graphs, preset test times, and force thresholds. The HHD includes 3 stirrups with an algometer attachment, user's guide, battery charger, sanitary covers, and carrying case.
Tests Available using the Lafayette Hand-Held Dynamometer- Peak force
- Time to reach peak force
- Total test time
- Average force
- Real-time force
- End force
- Average force from peak to end
- Percentage decrease from peak force to end force
What is DynoData?

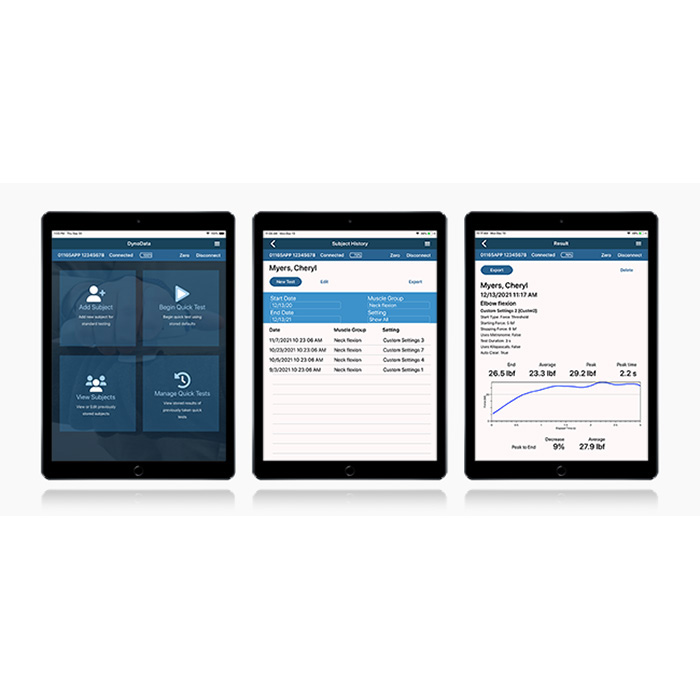

DynoData is designed to be used as an enhancement to a model 01165APP Lafayette Instrument Hand-Held Dynamometer. DynoData provides a wireless connection between the dynamometer and an iOS/Android device. This connection allows for a real-time visual display of the force being applied to the dynamometer, customization of test setups and settings, among other benefits. With simple controls, DynoData will improve the organization and efficiency of patient care.
DynoData Application Features (iOS/Android)- Link device to DynoData mobile app
- Edit and store dynamometer settings
- View and record data in real time
- Download and view data
FEATURES- Simple, ergonomic design fits easily into the palm of your hand

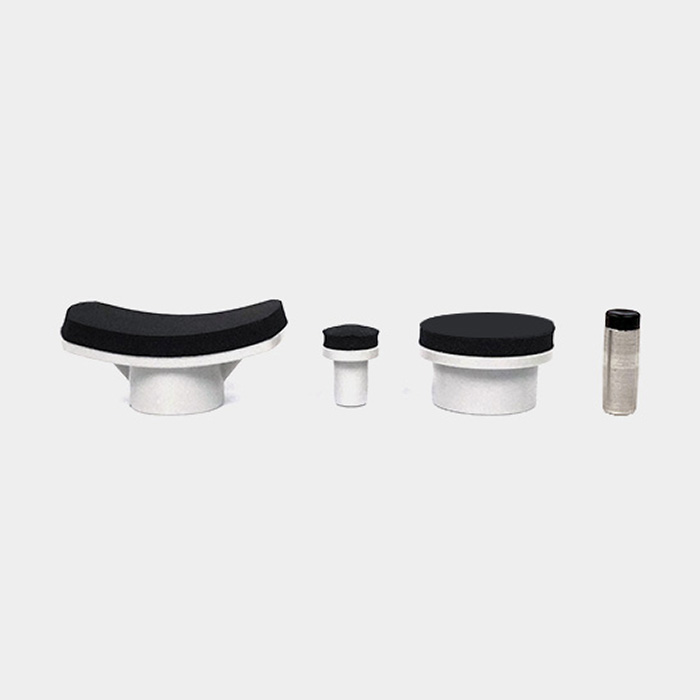

- Three (3) easy to change molded plastic stirrups with pads
- Can measure using kPa with new algometer attachment
- Automatic storage of data, with storage for up to 250 tests in device memory
- Tone to indicate start, stop, or metronome
- Powered by rechargeable lithium-ion battery
SPECIFICATIONS- Size: 3.1" x 5.11" x 1.6" (8.03 cm x 12.98 cm x 4.1 cm)
- Range: 0 - 300 lbs (136.1 kg, 1335 N, 9999 kPa)
- Accuracy: +/- 1 % over full scale or +/- 0.2 lbs
- Battery Life: 12 hours
- Data Storage Capacity: 250 tests
|
|
|
 |
|
 |
|
